Products > Surgical Microscope > Ophthalmic Surgical Microscope > Ophthalmic Surgical Microscope SM-2000L

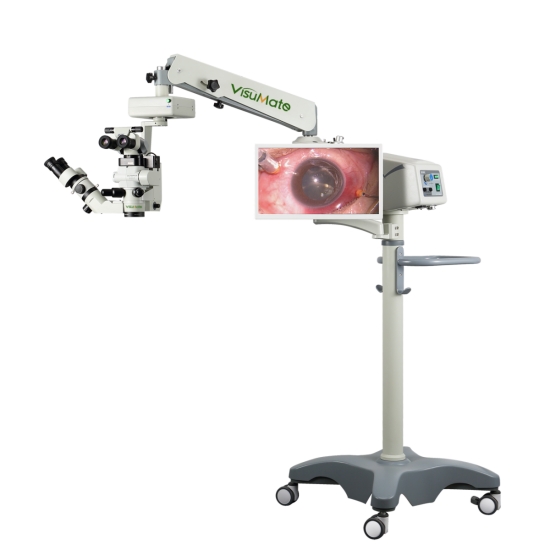

Ophthalmic Surgical Microscope SM-2000L
Product name : Ophthalmic Surgical Microscope SM-2000L
Product No. : SM-2000L
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Ophthalmic Surgical Operating Microscope
Model: SM-2000L
CE & US FDA Marked

SM-2000L Ophthalmic Surgical Microscope is our latest Microscope for export, which can do both anterior segment
surgery and retinal vitreous surgery. It is workable with MegaVue®️ Retinal Viewing System to meet retinal vitreous
surgery requirements and adaptable with video system to record surgery details.

Highlights:
1. Excellent Japanese OLYMPUS SZX7 main head;
2. Aspherical illumination system and red reflex set make surgery safer;
3. Independent coaxial Assistant Microscope with stereo view;
4. Adaptable with video system to live video for teaching and study purposes;
5. Workable with MegaVue®️ Lens Set and Image Inverter to meet retinal vitreous surgery requirements;
6. Stable and reliable X-Y speed with imported low noise motor;
7. Natural surgery image colors, large field of view and good depth of view;
8. LED lamp illumination and ON/OFF can be controlled by Foot Switch, which is more convenient for doctors,
 when they do retinal vitreous surgery.

Technical Specifications:
Microscope Part
Main Head                        Olympus SZX7 main head
Eyepiece                          10X wide field
Binocular
30° fixed, 0°~180° foldable Binocular (optional)
Inclination Angle               0
°~30°
Pupillary Distance             55~75mm
Diopter Adjustment           +5D~-8D Binocular
X-Y Speed                        2.2mm/sec by foot switch
Magnification                    4X~20X
Motorized Zoom
Field of View                     8mm~50mm
Working Distance             200mm
Focus                               40mm

Assistant Microscope Part
Type                                 Stereo & coaxial
Magnifications                  4X, 7X

Illumination System
Type                                 Aspherical design
Light Source                     Double bulbs, LED lamp illumination
Red Reflex                       Aspherical design
Control                             Stepless control
Intensity                           ≥70,000Lux
Power                              AC110V~220V, 60Hz/50Hz
Filter                                Macula Lutea Protection (yellow, green and blue optional)

Base Part
Length of Arm Extended  1200mm
Elevation                          ±260mm
Foot Switch                      Power focus, X-Y, Zoom, Illumination
Base Size                         560*560mm
