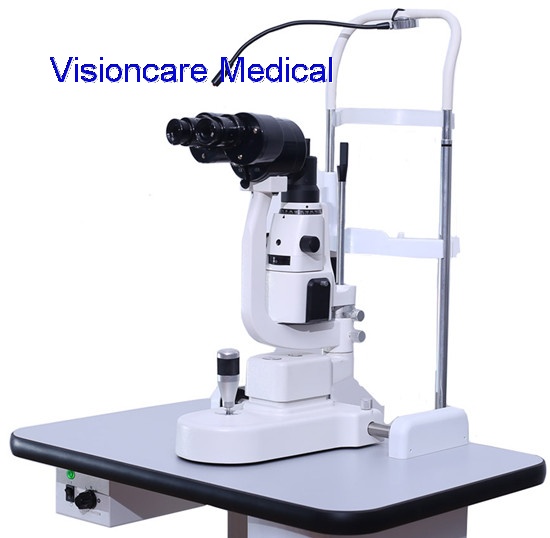

Standard 2 Step Slit Lamp
Product name : Standard 2 Step Slit Lamp
Product No. : KJ5X
←[Previous Product]
Online Inquiry         Email Us

  Details:

Standard Slit Lamp Microscope
Model: KJ5X
CE & FDA Marked

Features:
The Galilean type microscope system adopts toggling change, with 2 magnifications;
An excellent optical system shows a clear and sharp image;
14mm aperture observes the whole cornea and iris easily;
Workable with iPhone and Android Eyepiece Adapters to upgrade.


Technical Parameters:
Microscope Part
Microscope Type                          Converging Stereomicroscope
Magnification Changer                 Toggle Change (2 steps)
Total Magnifications                     10X,16X
Ocular Magnification                    10X
Pupillary Adjustment                     55mm~75mm
Diopter Adjustment                       ±5D
Field of View                                 ¢23mm(10X), ¢14mm(16X)

Fixed Lamp                                   Red LED

Slit Illumination Part
Slit Width                                      0~14mm continuous
Slit Length                                    1~14mm continuous
Lamp                                            12V/30W Halogen Lamp
Slit Angle                                      0°~180°
Filters                                           Heat absorption, Red free, Cobalt blue
Aperture Diameters                      ¢14mm, ¢9mm, ¢5.5mm, ¢2mm, ¢0.3mm


Power Supply
Input Voltage                                220V/110V~±10%
Input Frequency                           50Hz/60Hz
Power Consumption                     80VA(max)

Delivery Package
Dimension                                    720*500*480mm(L/W/H)
Net Weight                                   17kgs
Gross Weight                               23kgs
