Visioncare Medical Instruments Co.,Ltd

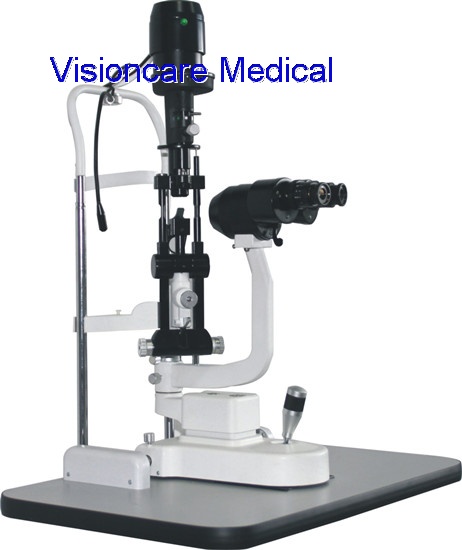

Standard Slit Lamp Microscope
Model: KJ5E
CE & FDA Marked

Features:
1. Universal Slit Lamp with total 3 magnifications;
2. The slit can be inclinated;
3. Excellent optical performance gives clear optical image and wide field of view;
4. 14mm Aperture can check iris clearly.

Technical Specifications:
Microscope Part
Microscope Type                Converging Stereomicroscope
Eyepieces                          10X, 16X
Magnifications                   10X, 16X, 25X
Field of View                      23mm, 14mm, 9mm
Adjustable Pupil Distance  55~75mm
Adjustable Diopter             ±8D

Slit Part
Slit Width                           0~14mm adjustable
Slit Length                         1~14mm adjustable
Slit Angle                           0~180 adjustable
Slit Inclination                    5, 10,15, 20
Aperture Diameter             0.2mm, 2mm, 3mm, 5mm, 8mm, 10mm, 14mm
Filter                                  Heat Absorption, Grey, Red free, Cobalt blue
Illumination Bulb               12V/50W halogen lamp

Power
Voltage                             AC110V~220V
Frequency                        60Hz/50Hz
Power                               80VA
