Standard 5 Step Slit Lamp
Product name : Standard 5 Step Slit Lamp
Product No. : KJ5D
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

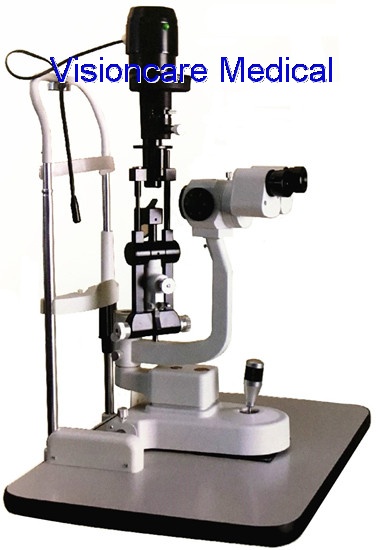

Ophthalmic Standard Slit Lamp Microscope
Model: KJ5D
CE & FDA Marked


Features:
1. The Galilean type microscope system adopts a revolving drum, with total 5 step magnifications;
2. An excellent optical system shows a clear and sharp image;
3.14mm aperture observes the whole cornea and iris easily;
4. Sharp pictures of ophthalmic anterior segment;
5. Ergonomic and aesthetic design with perfect use feeling;
6. All lenses are multi-coated, mildewproof and anti-reflection.

Technical Specifications:
Microscope Part
Microscope Type                      Parallel Stereomicroscope
Microscope Changer                Revolving Drum (5 steps)
Total Magnifications                  6X, 10X, 16X, 25X, 40X
Eyepiece Magnification            12.5X
Pupillary Adjustment                 55mm~75mm
Diopter Adjustment                   ±5D
Field of View                             Φ35mm(6X), Φ23mm(10X), Φ14mm(16X),Φ9mm(25X),
                                                 Φ5.5mm(40X)

Slit Part
Slit Width                                   0~14mm continuous (slit becomes a circle at 14mm)
Slit Length                                 1~14mm continuous
Aperture Diameters                   Φ14mm, Φ10mm, Φ8mm, Φ5mm, Φ3mm, Φ2mm, Φ0.2mm
Slit Angle                                   0°~180°
Slit Inclination                            5°, 10°, 15°, 20°
Lamp                                         12V/50W Halogen Lamp (LED Lamp optional)
Filters                                        Heat Absorption, ND, Red Free, Cobalt Blue

Power Supply
Input Voltage                             220V/110V~±10%
Input Frequency                        50Hz/60Hz
Power Consumption                  80VA

Delivery Package
Dimension                                  770*380*620mm(L/W/H)
Net Weight                                 22kgs
Gross Weight                             25kgs
