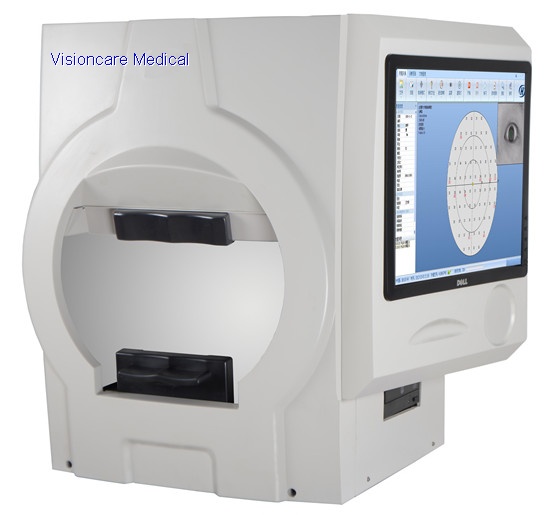

Auto Projection Perimeter APS-T00
Product name : Auto Projection Perimeter APS-T00
Product No. : APS-T00
←[Previous Product]
Online Inquiry         Email Us

Auto Projection Perimeter
Model: APS-T00
CE & US FDA Marked

1. The Projection Perimeter is compliant with Goldmann standard;
2. The model is an integrated type, with built-in computer and touch screen;
3. Color Perimetry: a more sensitive detection of early visual field defects;
4. Original Intelligent Testing Strategies (IDT): It takes 3 minutes to complete a full inspection
5. Kinetic Perimetry: Users can manually set the detection test parameters, and save it as usual
    kinetic perimetry program, by kinetic perimetry program standard (standard 45, 30,15).

Technical Specifications:
Stimulating Way                  Optical Projection
Projection Surface              Aspheric Projection Arc
Detection Method               Static Perimetry, Dynamic Perimetry
Detection Scope                 0°~90°
Brightnress Level                0-51db
Testing Distance                 300mm
Visual Target Color             Red, blue, White
Visual Target Brightness     0asb~10000asb

Background Light                Yellow(315asb), white (31.5asb)
Vision Target Interval Time  Patients Adaptive, standard, slow, custom
Pupil Size Measurement      Auto
Head Movement Way          AEC Eye Position monitoring and automatic correction system
Brightness Measurement    Brightness auto measurement and correction
Visual Target Size               I Grade, II Grade, III Grade, IV Grade, V Grade
Detection Strategy              Full-threshold, fast threshold, custom, two notation, three notation,
                                           quamtify defects, intelligent dynamic, fast intelligent dynamic
Threshold Policy                Age-related, threshold-related, single strength
Static Perimetry                 Threshold Test Mode: Center 10-2, Center 24-2, Center 30-2, Center 60-4,
                                            Nasal Step, Macula
                                          Screening Special Test Mode: Center 40, Center 64, Center 76, Center 80,
                                            Center Armaly, Peripheral 60, Nasal Step, Armaly Full Field, Full Field 81,
                                            Full Field 120, Full Field 35, Full Field 246, Upper 36, Upper 64, Esterman
                                            Monocular, Esterman Binocular
Dynamic Perimetry            Dynamic Program: Manual Procedures, Standard Procedures (Standard 45,
                                            Standard 30, a high resolution 15), Static Point map, Dark Spot Map,
                                            Blind Spot Map, Custom Scan, Custom Dynamic Program
                                          Stimulation Parameters: Adjustable (speed 1~9/s, visual target size, color, intensity,
                                            test ranges etc.)
Fixation Monitoring            Dynamic real time video monitoring, physiological blind spot monitoring, eye tracking
                                            curve, eye position offset alarm
Analysis Software              Reliability analysis, single vision analysis, triple report analysis,overview vision analysis,
                                            GHT glaucoma semi vision analysis, GPA glaucoma developing analysis
Report Figure                    Value map, grayscale map, the overall bias decibel chart, the overall deviation probability
                                            map, chart pattern deviation decibels, Pattern deviation probability plot, staring figure
